Oscillators

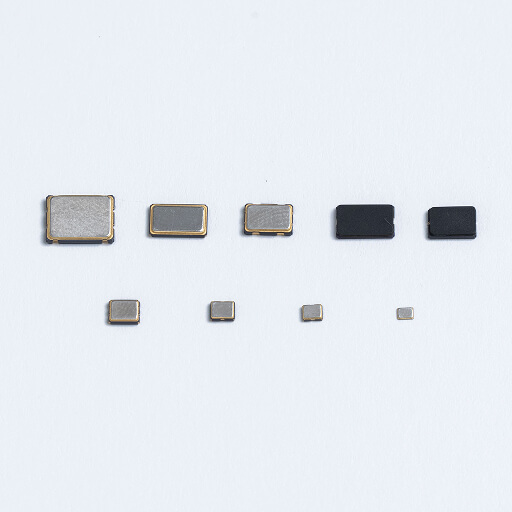

NKG offers various ceramic SMD packages ranging from 1.6×1.2 up to 5x7mm with wide frequency range from 1MHz up to 800MHz (depending on the model). Various output waveform are available such as: HCMOS / LVCMOS, PECL / LVPECL, LDVS, HCSL and CML.
Clock Oscillator in Ceramic Seam Seal SMD Packages - HCMOS / LVCMOS Output (XO)
| Device | Datasheet | Frequency | № of Pads | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SCH3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_6pads_LVCMOS_SCH3.pdf | 100MHz ~ 250MHz | 6 | 2.5 ~ 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 7.0 x 5.0 | Overall frequency stabilities of ±25PPM, ±50PPM to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_HCMOS_SCO3.pdf | 1MHz ~ 160MHz | 4 | 1.8 ~ 5.0V | –10 ~ +70 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 7.0 x 5.0 | Overall frequency stabilities of ±25PPM, ±50PPM to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_HCMOS_SCO5.pdf | 1MHz ~ 160MHz | 4 | 1.8 ~ 5.0V | –10 ~ +70 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 5.0 x 3.2 | Overall frequency stabilities of ±25PPM, ±50PPM to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO6 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_3225_HCMOS_SCO6.pdf | 1MHz ~ 160MHz | 4 | 1.8 ~ 5.0V | –10 ~ +70 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 3.2 x 2.5 | Overall frequency stabilities of ±25PPM, ±50PPM to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO7 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_2520_HCMOS_SCO7.pdf | 1MHz ~ 160MHz | 4 | 1.8 ~ 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 2.5 x 2.0 | Overall frequency stabilities of ±25PPM, ±50PPM to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO8 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_2016_HCMOS_SCO8.pdf | 1MHz ~ 100MHz | 4 | 1.8 ~ 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 2.0 x 1.6 | Overall frequency stabilities of ±25PPM, ±50PPM to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SMO3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MultiFreqOsc_SMD_7050_LVCMOS_SMO3.pdf | 150MHz ~ 250MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 7.0 x 5.0 | Overall frequency stabilities of ±25PPM, ±50PPM to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) |
Clock Oscillator in 32.768kHz Ceramic Seam Seal SMD Packages - HCMOS / LVCMOS Output
| Device | Datasheet | Frequency | № of Pads | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SCO5W_32k768 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_32k768_SMD_5032_HCMOS_SCO5.pdf | 32.768kHz | 4 | Wide supply voltage range of 1.8 ~ 3.3V (1.6~3.6V max) | –30 ~ +80 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 5.0 x 3.2 | Current consumption <100µA Overall frequency stabilities of ±20 to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO6W_32k768 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_32k768_SMD_3225_HCMOS_SCO6.pdf | 32.768kHz | 4 | Wide supply voltage range of 1.8 ~ 3.3V (1.6~3.6V max) | –30 ~ +80 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 3.2 x 2.5 | Current consumption <100µA Overall frequency stabilities of ±20 to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO7W_32k768 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_32k768_SMD_2520_HCMOS_SCO7.pdf | 32.768kHz | 4 | Wide supply voltage range of 1.8 ~ 3.3V (1.6~3.6V max) | –30 ~ +80 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 2.5 x 2.0 | Current consumption <100µA Overall frequency stabilities of ±20 to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SCO8W_32k768 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_32k768_SMD_2016_HCMOS_SCO8.pdf | 32.768kHz | 4 | Wide supply voltage range of 1.8 ~ 3.3V (1.6~3.6V max) | –30 ~ +80 –40 ~ +85 –40 ~ +105 –40 ~ +125 | 2.0 x 1.6 | Current consumption <100µA Overall frequency stabilities of ±20 to ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) |
Clock Oscillator in Metal Thru-Hole DIP Packages - HCMOS / LVCMOS Output
| Device | Datasheet | Frequency | № of Pins | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| CO1 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_DIP-14_HCMOS_CO1.pdf | 30kHz ~ 160MHz* | 4 | 1.0V, 1.2V, 1.8V 2.5V, 3.3V, 5.0V | –10 ~ +70 -40 ~ +85 | 20 x 13 DIP-14 | Frequency stabilities of ±25, ±50 and ±100PPM | |
| CO2 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_DIP-8_HCMOS_CO2.pdf | 30kHz ~ 160MHz* | 4 | 1.0V, 1.2V, 1.8V 2.5V, 3.3V, 5.0V | –10 ~ +70 -40 ~ +85 | 13 x 13 DIP-8 | Frequency stabilities of ±25, ±50 and ±100PPM |
Oscillator in Ceramic Seam Seal SMD Packages - HCSL Output (XO)
| Device | Datasheet | Frequency | № of Pads | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SHM3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MultiFreqOsc_SMD_7050_HCSL_SHM3.pdf | 150MHz ~ 700MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 7.0 x 5.0 | 4 SWITCHABLE FREQUENCIES OSCILLATOR Overall frequency stabilities of ±25, ±50 and ±100PPM | |
| SHO3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_HCSL_SHO3.pdf | 13.5MHz ~ 250MHz | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SHO5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_HCSL_SHO5.pdf | 13.5MHz ~ 250MHz | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SHO6 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_3225_HCSL_SHO6.pdf | 13.5MHz ~ 250MHz | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 3.2 x 2.5 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SHO7 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_2520_HCSL_SHO7.pdf | 13.5MHz ~ 250MHz | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 2.5 x 2.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SHP3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_8pads_HCSL_SHP3.pdf | 150MHz ~ 700MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM | |
| SHP5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_8pads_HCSL_SHP5.pdf | 150MHz ~ 700MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM |
Clock Oscillator in Ceramic Seam Seal SMD Packages - LVDS Output (XO)
| Device | Datasheet | Frequency | № of Pads | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SD06 SDH6 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_3225_LVDS_SDx6.pdf | 10MHz ~ 220MHz* 150MHz ~ 1500MHz** | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 3.2 x 2.5 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SDM3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MultiFreqOsc_SMD_7050_LVDS_SDM3.pdf | 150MHz ~ 2,100MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 7.0 x 5.0 | 4 SWITCHABLE FREQUENCIES OSCILLATOR Overall frequency stabilities of ±25, ±50 and ±100PPM | |
| SDO3 SDH3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_LVDS_SDx3.pdf | 10MHz ~ 220MHz* 150MHz ~ 1500MHz** | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SDO5 SDH5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_LVDS_SDx5.pdf | 10MHz ~ 220MHz* 150MHz ~ 1500MHz** | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SDO7 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_2520_LVDS_SDO7.pdf | 13.5MHz ~ 250MHz | 6 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 2.5 x 2.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SDP3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_8pads_LVDS_SDP3.pdf | 150MHz ~ 2,100MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM | |
| SDP5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_8pads_LVDS_SDP5.pdf | 150MHz ~ 2,100MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM |
Clock Oscillator in Ceramic Seam Seal SMD Packages - LVPECL Output (XO)
| Device | Datasheet | Frequency | № of Pads | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SPM3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MultiFreqOsc_SMD_7050_LVPECL_SPM3.pdf | 150MHz ~ 2,100MHz | 8 | 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 7.0 x 5.0 | 4 SWITCHABLE FREQUENCIES OSCILLATOR Overall frequency stabilities of ±25, ±50 and ±100PPM | |
| SPO3 SPH3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_LVPECL_SPx3.pdf | 10MHz ~ 220MHz* 150MHz ~ 1500MHz** | 6 | 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SPO5 SPH5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_LVPECL_SPx5.pdf | 10MHz ~ 220MHz* 150MHz ~ 1500MHz** | 6 | 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SPO6 SPH6 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_3225_LVPECL_SPx6.pdf | 10MHz ~ 220MHz* 150MHz ~ 1500MHz** | 6 | 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 3.2 x 2.5 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SPO7 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_2520_LVPECL_SPO7.pdf | 13.5MHz ~ 250MHz | 6 | 2.5V 3.3V | –10 ~ +70 –40 ~ +85 –40 ~ +105 | 2.5 x 2.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Automotive grade per AEC-Q200 is available (shall be requested) | |
| SPP3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_8pads_LVPECL_SPP3.pdf | 150MHz ~ 2,100MHz | 8 | 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM | |
| SPP5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_8pads_LVPECL_SPP5.pdf | 150MHz ~ 2,100MHz | 8 | 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM |
Clock Oscillator in Ceramic Seam Seal SMD Packages - Spread Spectrum - HCMOS Output
| Device | Datasheet | Frequency | № of Pads | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SEO3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_LowEMI_SEO3.pdf | 3MHz ~ 220MHz | 4 | 2.5V 3.3V | –10 ~ +70 -40 ~ +85 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Center spread and down spread with spread percentage 0.5, 1, 2, 3% and others available | |
| SEO5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_LowEMI_SEO5.pdf | 6MHz ~ 166MHz | 4 | 2.5V 3.3V | –10 ~ +70 -40 ~ +85 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM Center spread and down spread with spread percentage 0.5, 1, 2, 3% and others available | |
| SEO6 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_3225_LowEMI_SEO6.pdf | 16MHz ~ 40MHz | 4 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 3.2 x 2.5 | Overall frequency stabilities of ±25, ±50 and ±100PPM Center spread and down spread with spread percentage 0.25, 0.5, 1.5 and 2% available | |
| SEO7 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_2520_LowEMI_SEO7.pdf | 20MHz ~ 40MHz | 4 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 2.5 x 2.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM Center spread and down spread with spread percentage 0.25, 0.5, 1.5 and 2% available | |
| SEO8 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_2016_LowEMI_SEO8.pdf | 20MHz ~ 40MHz | 4 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 2.0 x 1.6 | Overall frequency stabilities of ±25, ±50 and ±100PPM Center spread and down spread with spread percentage 0.25, 0.5, 1.5 and 2% available |
Clock Oscillator in Ceramic Seam Seal SMD Packages - CML Output (XO)
| Device | Datasheet | Frequency | № of Pads | Supply Voltage (V) | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SQP3 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_7050_8pads_CML_SQP3.pdf | 150MHz ~ 2,100MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 7.0 x 5.0 | Overall frequency stabilities of ±25, ±50 and ±100PPM | |
| SQP5 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_Osc_SMD_5032_8pads_CML_SQP5.pdf | 150MHz ~ 2,100MHz | 8 | 1.8V 2.5V 3.3V | –10 ~ +70 –40 ~ +85 | 5.0 x 3.2 | Overall frequency stabilities of ±25, ±50 and ±100PPM |
