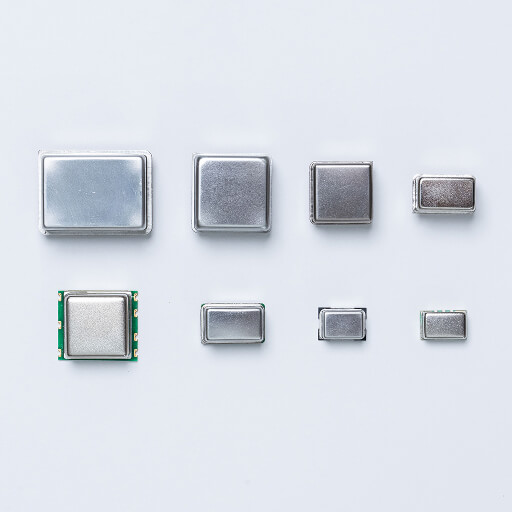

    NKG’s Oven Controlled Crystal Oscillators (OCXO) feature SMD packages and are based on PCB technology, available in sizes of 14mm x 9.0mm, 25mm x 22mm, and 26mm x 26mm. Our thru-hole packages are offered in DIP-14, 20mm x 20mm, 25mm x 25mm, and 36mm x 27mm. These units, providing frequencies from 5MHz to 100MHz for either sinewave or HCMOS outputs, can also include an additional frequency adjustment function and a reference voltage output for enhanced control capabilities.

    OCXO in SMD Packages on PCB Base - LVTTL, HCMOS or Sine Wave Output

    DeviceDatasheetFrequency№ of PadsSupply Voltage (V)Temp. Range
    (°C)    		Package Size
    (mm2)    		Features
    SOCO14https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_SMD_14x9_SOCO14.pdf10MHz ~ 100MHz63.3V
    5.0V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		9 x 14Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM
    SOCO22https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_SMD_20x20_7pads_SOCO22.pdf5MHz ~ 200MHz73.3V
    5.0V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		20 x 20Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM
    SOCO25https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_SMD_25x22_5pads_SOCO25.pdf5MHz ~ 200MHz53.3V
    5.0V
    12V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		25 x 22Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM
    SOCO27https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_SMD_25x22_7pads_SOCO27.pdf5MHz ~ 200MHz73.3V
    5.0V
    12V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		25 x 22Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM

    OCXO in Metal Thru-Hole Packages - LVTTL, HCMOS or Sine Wave Output

    DeviceDatasheetFrequency№ of PinsSupply Voltage (V)Temp. Range
    (°C)    		Package Size
    (mm2)    		Features
    OCO1https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_DIP14_OCO13.pdf5MHz ~ 200MHz43.3V
    5.0V
    12V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		20 x 13
    DIP-14    		Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM
    OCO220https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_THD_20x20_OCO220.pdf5MHz ~ 200MHz53.3V
    5.0V
    12V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		20 x 20Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM
    OCO225https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_THD_25x25_OCO225.pdf5MHz ~ 200MHz53.3V
    5.0V
    12V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		25 x 25Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM
    OCO360https://nkg.com.hk/wp-content/uploads/datasheet/NKG_OCXO_THD_36x27_OCO360.pdf5MHz ~ 100MHz53.3V
    5.0V
    12V    		–20 ~ +70
    –30 ~ +75
    –40 ~ +85    		36 x 27Stabilities from 3PPB to 100PPB

    Aging per day 0.3PPB to 10PPB

    Aging per year 30PPB to 1PPM
