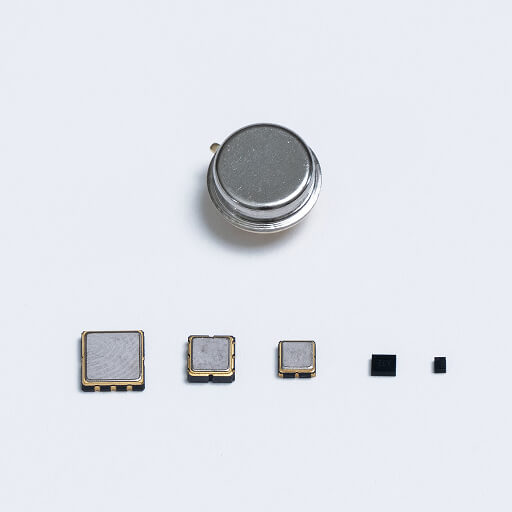

MCF and SAW Devices
NKG delivers an expansive array of Monolithic Crystal Filters (MCF) and SAW devices, including SAW Resonators and Filters, in a variety of thru-hole and surface mount (SMD) configurations. Our MCF, constructed from stable quartz, are perfectly suited for IF filtering, combining cost-efficiency with a compact design. These attributes make them exceptionally well-suited for the demanding requirements of current wireless and telecommunications applications.
Monolithic Crystal Filter (MCF) in Ceramic Seam Seal SMD Package
| Device | Datasheet | Frequency | № of J-Leads | № of Poles | Temp. Range (°C) | Package Size (mm2) | Features | |
|---|---|---|---|---|---|---|---|---|
| SCF7M | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MCF_SMD_7050_SCF7M.pdf | 20 ~ 50MHz 21.4MHz 21.7MHz 45.0MHz 45.1MHz | 6 | 2 Poles or 4 Poles (Pair) | –20 ~ +70 | 7.0 x 5.0 | AT-CUT fundamental mode filters Bandwidth typ. ±3.75kHz, ±7.5kHz, 15kHz Insertion loss -3dB Passband ripple ≤–1dB Stop bandwidth 18 ~ 60kHz Guarantied attenuation of 50~80dB @ 910kHz |
Monolithic Crystal Filter (MCF) in Metal Thru-Hole Package
| Device | Datasheet | Frequency | № of J-Leads | № of Poles | Temp. Range (°C) | Package Size (mm2) | Features | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01-MCF-01 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MCF_HC-49U_MCF-01.pdf | 10.7MHz 21.4MHz | 3 | 2 Poles or 4 Poles (Pair) | –20 ~ +70 | HC-49/U | AT-CUT fundamental mode filters Bandwidth typ. ±3.75kHz, ±7.5kHz, 15kHz Insertion loss -3dB Passband ripple ≤–1dB Stop bandwidth 18 ~ 60kHz Guarantied attenuation of 50~80dB @ 910kHz | ||||||
| 01-MCF-04 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MCF_HC-49T_MCF-04.pdf | 10.7MHz 21.4MHz 45 ~ 100MHz | 3 | 2 Poles or 4 Poles (Pair) | –20 ~ +70 | HC-49/T | AT-CUT fundamental mode filters Bandwidth typ. ±3.75kHz, ±7.5kHz, 15kHz Insertion loss -3dB Passband ripple ≤–1dB Stop bandwidth 18 ~ 60kHz Guarantied attenuation of 50~80dB @ 910kHz | ||||||
| 01-MCF-05 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MCF_UM-1_MCF-05.pdf | 10.7MHz 21.4MHz 45 ~ 100MHz | 3 | 2 Poles or 4 Poles (Pair) | –20 ~ +70 | UM-1 | AT-CUT fundamental mode filters Bandwidth typ. ±3.75kHz, ±7.5kHz, 15kHz Insertion loss -3dB Passband ripple ≤–1dB Stop bandwidth 18 ~ 60kHz Guarantied attenuation of 50~80dB @ 910kHz | ||||||
| 01-MCF-06 | https://nkg.com.hk/wp-content/uploads/datasheet/NKG_MCF_UM-5_MCF-06.pdf | 10.7MHz 21.4MHz 45 ~ 100MHz | 3 | 2 Poles or 4 Poles (Pair) | –20 ~ +70 | UM-5 | AT-CUT fundamental mode filters Bandwidth typ. ±3.75kHz, ±7.5kHz, 15kHz Insertion loss -3dB Passband ripple ≤–1dB Stop bandwidth 18 ~ 60kHz Guarantied attenuation of 50~80dB @ 910kHz | ||||||
| PCN | https://nkg.com.hk/wp-content/uploads/datasheet/NK-PCN_NJ21002NJ21003.pdf | PCNs for above listed PN families, change of conductive adhesive as of May 2021, PCNNJ21002 and PCNNJ21003 | |||||||||||
