Ceramic Based Products

Ceramic Based Products

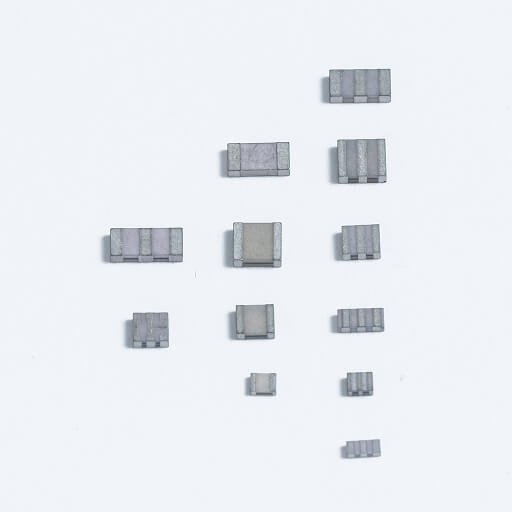

Ceramic resonators and filters are available in a range of Surface Mount Device (SMD) sizes, tailored to specific frequencies, as well as in traditional thru-hole packages. These can be resin encapsulated or housed in plastic, providing versatile options to meet diverse application needs.

Ceramic Resonator Units with Inbuilt Capacitors in SMD and Thru-Hole Packages (THD)

DeviceDatasheet№ of PadsFrequencyTemp. Range
(°C)
Input Capacitance
(pF)
Package Size
(mm2)
Features
ZTTCChttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_SMD_74x34_ZTTCC_EOL.pdfEOL per December 31st, 2024SMD
7.4 x 3.4 x 1.8
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTTCEhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_SMD_32x12_ZTTCE.pdf38MHz ~ 12MHz–25 ~ +85
–40 ~ +85
–40 ~ +125
10
15
22
30
33
SMD
3.2 x 1.3 x 1.0
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTTCPhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_SMD_60x30_ZTTCP.pdf31.84MHz ~ 12MHz
and
16.0MHz
–25 ~ +85
–40 ~ +85
–40 ~ +125
5
10
15
22
30
33
39
47
SMD
6.0 x 3.0 x 1.8
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTTCRhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_SMD_45x20_ZTTCR.pdf34MHz ~ 12MHz–25 ~ +85
–40 ~ +85
–40 ~ +125
15
22
30
33
SMD
4.5 x 2.0 x 1.2
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTTCShttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_SMD_47x41_ZTTCS.pdf36MHz ~ 60MHz–25 ~ +85
–40 ~ +85
–40 ~ +125
5
10
15
22
30
33
SMD
4.7 x 4.1 x 1.2
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTTCVhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_SMD_37x31_ZTTCV.pdf38MHz ~ 60MHz–25 ~ +85
–40 ~ +85
–40 ~ +125
5
10
15
22
30
33
SMD
3.7 x 3.1 x 1.5
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTTCWhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_SMD_25x20_ZTTCW.pdf320MHz ~ 60MHz–25 ~ +85
–40 ~ +85
–40 ~ +125
5
6
10
12
15
SMD
2.5 x 2.0 x 1.2
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTTLShttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_THD_10x8_ZTTLS_EOL.pdfEOL as of October 1st, 2021THD
10 x 8 x 5
ZTTWShttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonatorCaps_THD_10x6_ZTTWS_EOL.pdfEOL as of October 1st, 2021THD
10 x 5.5 x 4

Ceramic Resonator Units in SMD and Thru-Hole Packages (THD)

DeviceDatasheet№ of PinsFrequencyTemp. Range
(°C)
Load Capacitance
(pF)
Package Size
(mm2)
Features
ZTAhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonator_THD_10mm_ZTA_EOL.pdfEOL as of October 1st, 2021THD
10 x 10 x 5
ZTACChttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonator_SMD_74x34_ZTACC_EOL.pdfEOL per December 31st, 2024SMD
7.4 x 3.4 x 1.8
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTACPhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonator_SMD_60x30_ZTACP.pdf21.84MHz ~ 12MHz–25 ~ +85
–40 ~ +85
30SMD
6.0 x 3.0 x 1.8
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTACShttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonator_SMD_47x41_ZTACS.pdf26MHz ~ 60MHz–25 ~ +85
–40 ~ +85
5
15
30
SMD
4.7 x 4.1 x 1.2
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTACVhttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonator_SMD_37x31_ZTACV.pdf28MHz ~ 60MHz–25 ~ +85
–40 ~ +85
5
15
30
SMD
3.7 x 3.1 x 1.5
Tolerances ±0.5% (standard), ±0.3% available

Stability ±0.3% or 0.4% typically achieved

Aging over 10 years 0.3%
ZTAWShttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicResonator_THD_10x6_ZTAWS_EOL.pdfEOL as of October 1st, 2021THD
10 x 5.5 x 4

Ceramic Filter Units in Ceramic SMD and Thru-Hole Packages (THD)

DeviceDatasheet№ of PinsFrequencyInput/Output Capacitance
(pF)
Temp. Range
(°C)
Package Size
(mm2)
Features
LThttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicFilter_THD_7x7_LT_EOL.pdfEOL as of October 1st, 2021THD
7.0 x 7.0 x 4.0
LTCA
LTVC
https://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicFilter_SMD_70x30_LTCx.pdf310.700MHz330Ω
470Ω
–25 ~ +85SMD
7.0 x 3.0 x 1.5
3dB bandwidth from 180 to 330 kHz
20dB bandwidth from 470 to 700 kHz
Insertion loss ranging from 3dB to 4.5dB
LTCShttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicFilter_SMD_35x31_LTCS.pdf410.700MHz330Ω–25 ~ +85SMD
3.5 x 3.1 x 1.4
3dB bandwidth from 180 to 330 kHz
20dB bandwidth from 470 to 700 kHz
Insertion loss ranging from 3dB to 4.5dB
LTShttps://nkg.com.hk/wp-content/uploads/datasheet/NKG_CeramicFilter_THD_10x8_LTS_EOL.pdfEOL as of October 1st, 2021THD
10 x 8.0 x 4.0
